Products
Our factory provides China Electric Screw Press, Tube Annealer, Solid State High Frequency Compact Pipe Welder, Induction Heat Treatment Equipment, ect. Everyone knows us for our excellent service, fair prices, and high caliber products. You are welcome to place an order.
- View as
150KW High Frequency Pipe Welding Machine
TENYES 150KW High Frequency Pipe Welding Machine adopts Three-phase AC (line voltage 380V, frequency 50HZ) through step-down transformer go into rectifier bridge (SCR three-phase full control rectifier bridge) become pulse direct current, and this DC through filter wave go into inverter bridge (adopts high power transistor MOSFET) become to high frequency current, and this high frequency current supply to loading and can be used to weld pipe. Inverter bridge adopts modules structure and each pair inverter power unit can output above 50KW, different power equipment and use different power units amounts, but basic structure is same. Tank circuit adopts series and parallel structure, no output welding transformer, no high voltage and reduce deliver loss.
Read MoreSend Inquiry
200KW High Frequency Pipe Welding Machine
TENYES company in China is committed to providing innovative, reliable, and efficient welding solutions for all kindly customers. The 200KW High-Frequency Pipe Welding Machine features a user-friendly interface that delivers optimal performance, high welding speed, and energy-saving capabilities for clients. The 200KW High Frequency Pipe Welding Machine rectifier cabinet contains a three-phase thyristor-controlled rectifier bridge that uses thyristors to adjust the rectification angle α and thereby control the output power of the power supply. The filtered DC voltage then enters the high-frequency inverter,the output is a single-phase high-frequency power that enters the resonance circuit. The high-frequency energy is delivered to the load through a matching and adjustment mechanism, compl......
Read MoreSend Inquiry

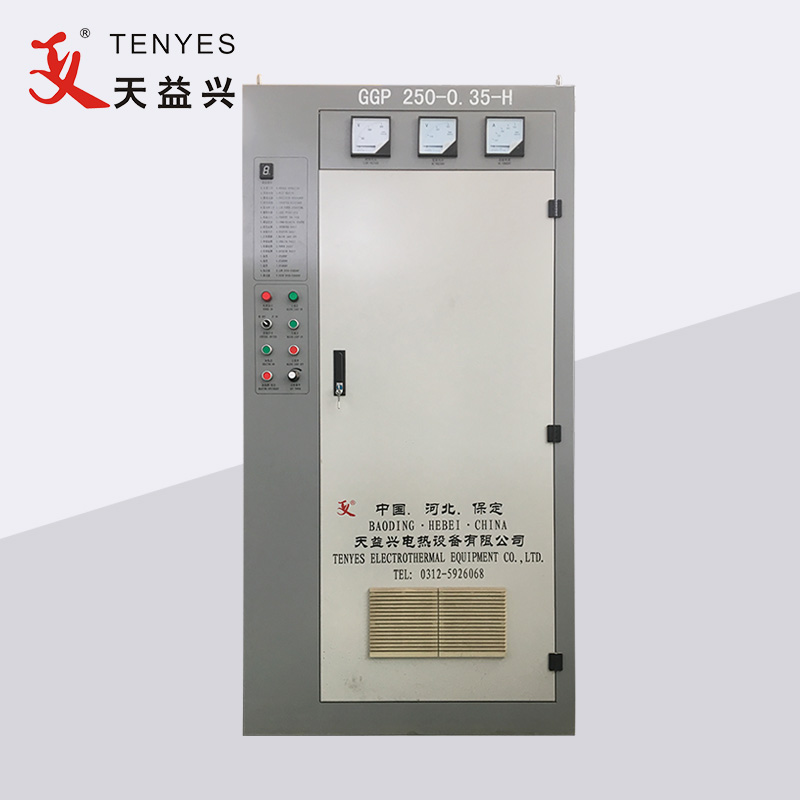

250KW High Frequency Pipe Welding Machine
The 200KW High Frequency Pipe Welding Machine by TENYES is an mature pipe welding equipment that is perfect for clients who seeking a reliable, efficient, and durable welding machine. TENYES have rich experience in manufacturing solid state high frequency pipe welding machine.The 250KW High Frequency Pipe Welding Machine cables connection is easy and simple. There are less than ten control cables between the rectifier cabinet and the inverter cabinet, and they are randomly configured. There is also very few cables between the rectifier power supply and the console operator station.
Read MoreSend Inquiry
300KW High Frequency Pipe Welding Machine
TENYES 300KW High frequency pipe welding machine is designed for straight seam induction welding of steel pipe/tube. The whole set of welder comprises of rectifying cabinet, inverter cabinet (slot cabinet), circulating cooling system for soft water, step-down transformer, center control console, output bus bar, induction/contact welding system, and so on. The solid-state high frequency welder is designed according to continuous operations. And the instructor are three turns or single turn.
Read MoreSend Inquiry
400KW High Frequency Pipe Welding Machine
The 400KW High frequency pipe welding machine is designed for straight seam inductive welding of steel pipe. The whole set consist of rectifying cabinet, inverter cabinet, circulating cooling system for soft water, step down transformer, console, and so on.
Read MoreSend Inquiry
500KW High Frequency Pipe Welding Machine
TENYES is a leading manufacturer of high frequency pipe welding machines in China. With over 20 years of experience in the field, TENYES has become a trusted supplier for businesses and contractors looking for a reliable source of high frequency welding machines. TENYES provide excellent after-sales service and technical support to ensure that their customers easily running the welder. The 500KW High Frequency Pipe Welding Machine has more than 20 kinds of protection measures are set up on the whole machine to maximize the stability of the equipment and prevent equipment damage. All alarm information is processed by the control board and sent to the PLC system. Through the display screen, maintenance personnel can easily understand the cause of equipment failure and how to deal with it.
Read MoreSend Inquiry
