Tube Seam Online Annealer

Export to South Korea 500kw medium frequency pipe seam annealing equipment

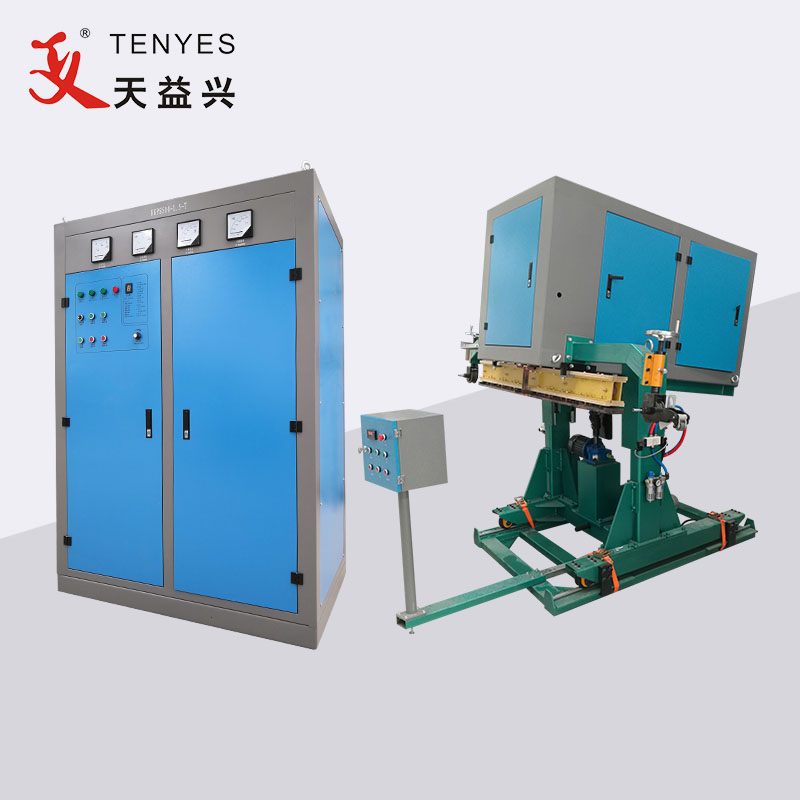

This TENYES Tube Seam Online Annealer normally consist of medium frequency cabinet and Tube Annealer.

TENYES Tube Seam Online Annealer Introduction

Tube Seam Online Annealer Online Annealer is an advanced technology for the production of high-strength steel pipes, through the on-line annealing of welds, the residual stress of welding is eliminated, the structure is improved, and the weld and its heat-affected zone have the same structure, toughness and strength properties as the base metal.

The steel pipe induction annealing equipment is to use the induction heating coil as the main component of the continuous welded pipe machinery, and heat the weld that has just been welded and quenched to above its critical temperature, and anneal the steel pipe weld to prevent potential cracks in the weld. The resulting fine-grained structure ensures a strong steel tube that meets all standard specifications.

TENYES Tube Seam Online Annealer Parameter (Specification)

DC Power from 25KW to 3000KW, Inverter frequency from 400Hz to 8000Hz

TENYES Tube Seam Online Annealer Feature And Application

Tube Seam Online Annealer is widely used in the manufacture of oil transmission pipes and other high-quality steel pipes.

The complete set of steel pipe weld online annealing equipment is composed of thyristor medium frequency power supply, online annealing inductor/mechanical adjustment mechanism, switch cabinet and comprehensive operation console. Tube Seam Online Annealer have some advantages, such as microcomputer control, zero voltage starting vibration,constant power regulation, digital display of working state.
