100KW High Frequency Pipe Welding Machine
  • 100KW High Frequency Pipe Welding Machine100KW High Frequency Pipe Welding Machine

100KW High Frequency Pipe Welding Machine

TENYES is dedicated to producing reliable and efficient pipe welding equipment that meets the needs of industrial customers. TENYES is a leading China-based manufacturer and supplier of high-quality pipe welding equipment, including the 100KW High Frequency Pipe Welding Machine. The 100KW High Frequency Pipe Welding Machine uses the commonly known AC-DC-AC frequency conversion structure. The three-phase 380V power supply is first get into a switch cabinet, which leads to a step-down transformer to reduce the voltage to approximately 200V before entering the rectifier cabinet.

Send Inquiry

Product Description


I.Equipment Usage: Steel pipe welding

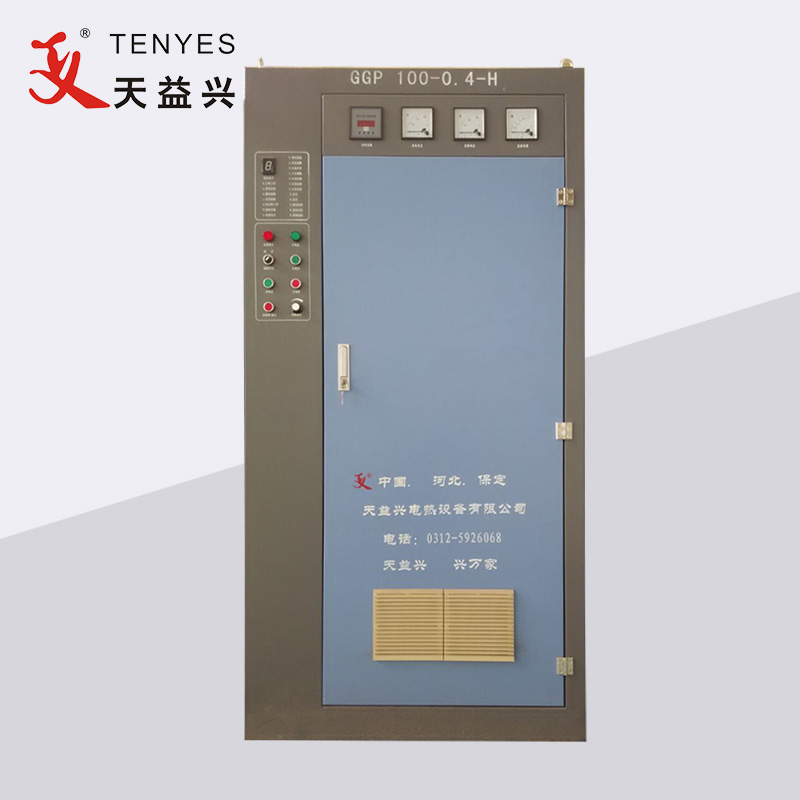

II.Equipment Name and Model: Solid State High Frequency Welder, GGP100-0.4-H

III.100KW High frequency pipe welding machine includes the following equipment:

Rectifying cabinet

Inverter cabinet

Central Control Console

Step-down transformer

Water-water cooling system

IV.Equipment Technical Parameters


Application

Steel pipe diameter: φ10-φ35mm

Steel strip wall thickness: 0.5-1.5mm

Welding mode: induction Type

Welding speed: 60-100m


Operation parameters

Rated power: 100KW

Rated DC voltage: 250V

Rated DC current: 500A

Rated frequency: 400KHZ

Efficiency: ≥85%

Output High Frequency power: ≥100KW



Power Supply requirements

Power supply form: three-phase four-wire system power frequency alternating current, line voltage 380V±5%

Power distribution capacity: above 120KVA

Power factor: ≥0.85

Power supply cable: plastic-covered copper wire, each phase≥95mm2 earth wire≥50mm2
