1200KW High Frequency Pipe Welding Machine

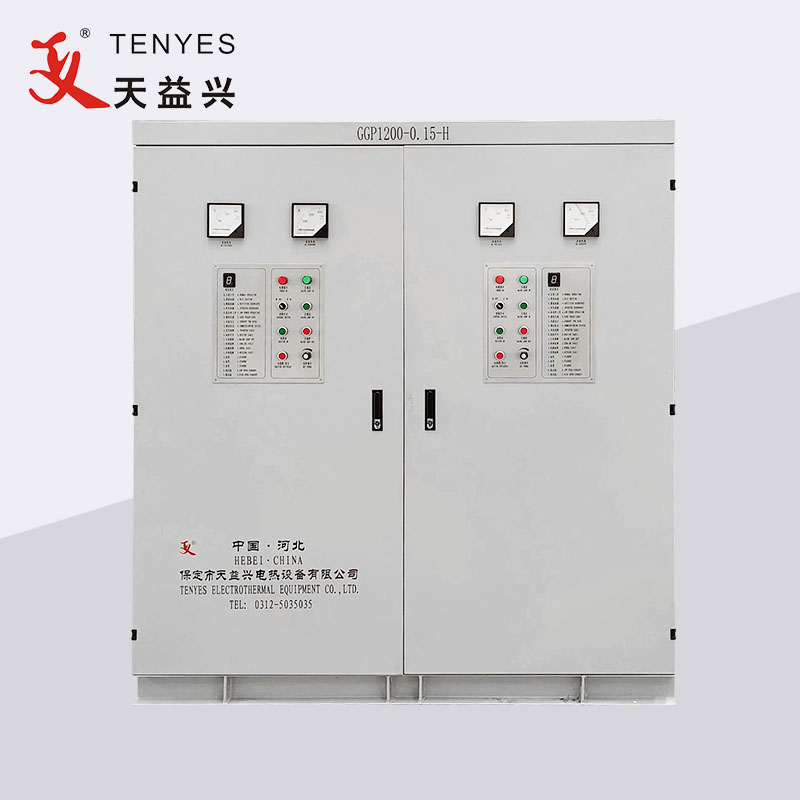

TENYES 1200KW High frequency pipe welding machine mainly consist of step-down oil transformer,rectifier cabinet,inverter cabinet,console,cooling system,bracket for support inverter cabinet, sometimes also matched with DC driver according to customer’s requirements.

Send Inquiry

Product Description

TENYES 1200KW High frequency pipe welding machine Ordinary three-phase AC power (line voltage 380V, frequency 50HZ) is reduced by a transformer (line voltage 200V, frequency 50HZ), enters the rectifier cabinet, undergoes rectification, voltage regulation, and filtering, and becomes continuously adjustable DC power from 0 to 240V; Entering the inverter bridge again (using high-power transistor MOSFET), it becomes high-frequency current, which can be supplied to the load slot for induction heating. The inverter slot power unit adopts a modular structure, and each pair of power units can output a power of over 50KW. The number of power units used varies depending on the power of the equipment, and the basic structure of the equipment is the same regardless of its size. The slot is a series parallel hybrid resonant form, without high voltage and output transformer. The number of power units used in this device is sixteen pairs.

TENYES 1200KW High frequency pipe welding machine Parameter (Specification)

Application		Operation parameter		Power supply
Steel pipe OD	Φ273-Φ406	Rated power	1200kW	Power supply form	3AC 380 ±5%
Steel strip thickness	8.0-10.0	Rated DC voltage	240V	Power supply form	3AC 380 ±5%
Welding mode	Induction or contact type	Rated DC current	5000A	Power distribution capacity	Larger than 1500KVA
Welding mode	Induction or contact type	Rated frequency	150KHZ	Power factor	≥0.85
Welding speed	10-20(m)	Efficiency	≥85%	Power supply cable	Each phase of plastic-covered copper wire ≥1200mm² Ground wire ≥400mm²
