1000KW High Frequency Pipe Welding Machine
  • 1000KW High Frequency Pipe Welding Machine1000KW High Frequency Pipe Welding Machine

1000KW High Frequency Pipe Welding Machine

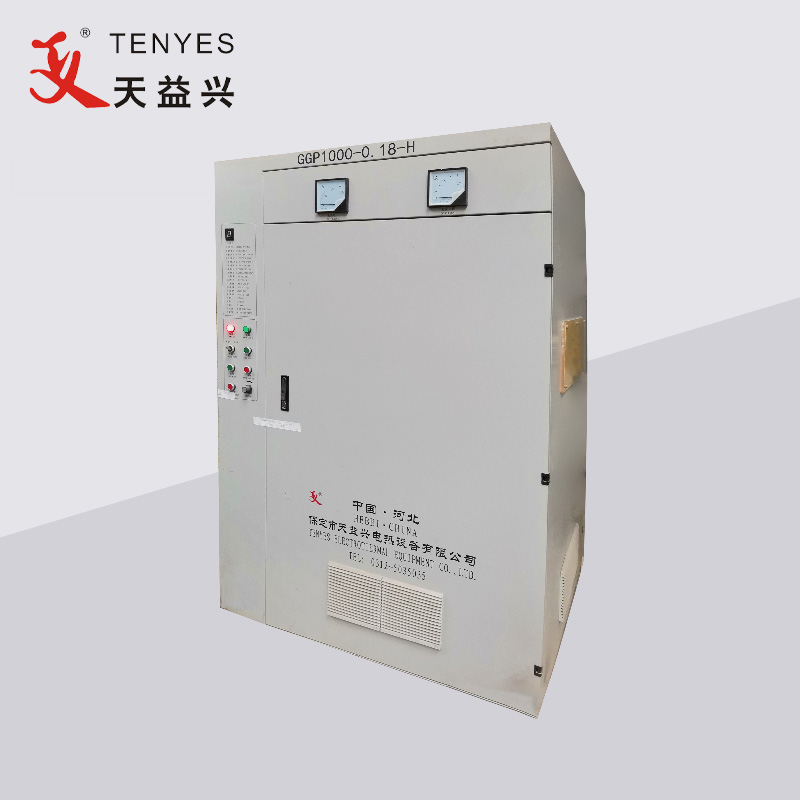

TENYES 1000KW High frequency pipe welding machine mainly consist of step-down oil transformer,rectifier cabinet,inverter cabinet,console,cooling system,bracket for support inverter cabinet, sometimes also matched with DC driver according to customer’s requirements.

Send Inquiry

Product Description


TENYES 1000KW High frequency pipe welding machine Ordinary three-phase AC power (line voltage 380V, frequency 50HZ) is reduced by a transformer (line voltage 200V, frequency 50HZ), enters the rectifier cabinet, undergoes rectification, voltage regulation, and filtering, and becomes continuously adjustable DC power from 0 to 240V; Entering the inverter bridge again (using high-power transistor MOSFET), it becomes high-frequency current, which can be supplied to the load slot for induction heating. The inverter slot power unit adopts a modular structure, and each pair of power units can output a power of over 50KW. The number of power units used varies depending on the power of the equipment, and the basic structure of the equipment is the same regardless of its size. The slot is a series parallel hybrid resonant form, without high voltage and output transformer. The number of power units used in this device is sixteen pairs.


TENYES 1000KW High frequency pipe welding machine Parameter (Specification)

Application

Operation parameter

Power supply

Steel pipe OD

Φ273-Φ406

Rated power

1000kW

Power supply form

3AC 380 ±5%

Steel strip thickness

8.0-10.0

Rated DC voltage

240V

Welding mode

Induction or contact type

Rated DC current

5000A

Power distribution capacity

Larger than 1500KVA

Rated frequency

150KHZ

Power factor

≥0.85

Welding speed

10-20(m)

Efficiency

≥85%

Power supply cable

Each phase of plastic-covered copper wire ≥1000mm²

Ground wire ≥400mm²
