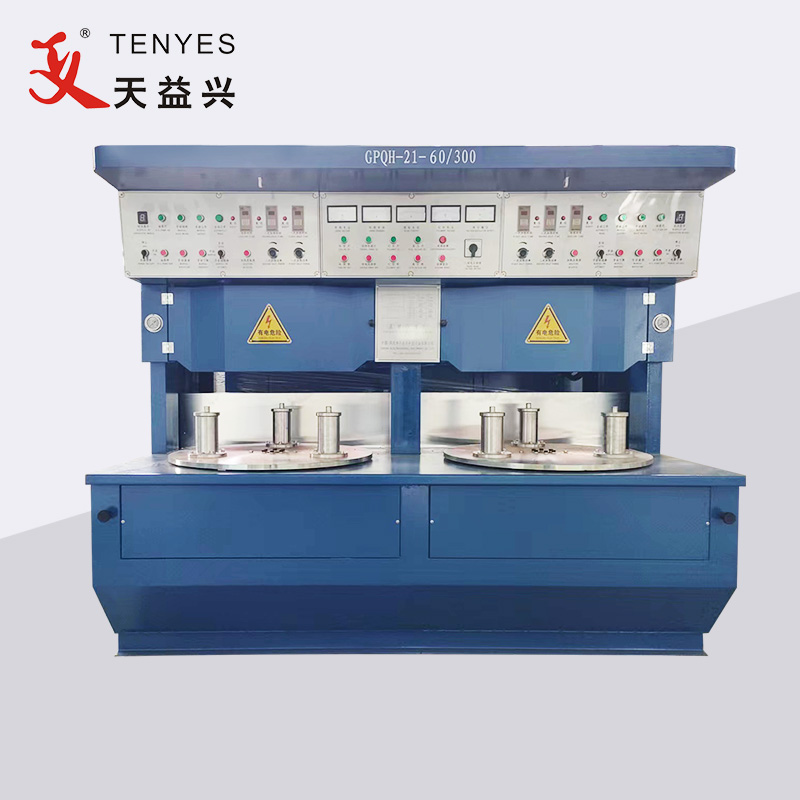

60KW Transistor Cookware Bottom Brazing Machine

TENYES 60KW Transistor Cookware Bottom Brazing Machine uses the IGBT high frequency induction heating machine to provide heating power and the pneumatic system as the drive, this brazing machine have such advantages such as stable operation, precise control, easy operation and high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel cookware and kitchen utensil.

Send Inquiry

Product Description

Multi layer composite bottom brazing machine is mainly used for composite bottom welding of stainless steel or aluminum pots, pots, pots and other catering utensils, and can also be used for other flat heating situations of workpieces. This 60KW Transistor Cookware Bottom Brazing Machine is a high-tech product that integrates mechanical, hydraulic, and electrical components controlled by multiple sets of microcomputers. Its main performance ranks at the leading level in China.

Our company TENYES has integrated and launched a new generation of brazing equipment, MOSFET brazing machine, based on the existing electronic tube brazing machine and IGBT brazing machine. The new brazing machine has greatly improved its heating process. We will now provide a detailed explanation of the installation and usage requirements, as well as the issues to be noted, for the convenience of customers to use and operate, in order to avoid unnecessary losses.

TENYES 60KW Transistor Cookware Bottom Brazing Machine Parameter (Specification)

Model	GPQH-21-60/300
Function part	Composite metal pot bottom pressure induction heating welding
Component part	Operation table, Power system, Water cooling system
Size of work-piece	100-280mm
Power	60kw, 200-300KHz, 380V
Induction head	2pcs
Dimension	2450x2400x2000mm（L×W×H））

This machine mainly consists of the following parts:

1. High frequency power supply: including three-phase rectification, inverter bridge, slot capacitor, inductor (large module head), and other parts.

2. Mechanical mechanism: including rising and falling cylinders.

3. Hydraulic lifting mechanism: including hydraulic station (including motor, hydraulic pump, solenoid valve, etc.) and hydraulic cylinder.

4. Water cooling system: heat exchanger, water pump, motor, water distributor, water tank, water temperature, water pressure gauge, etc.

5. Microcomputer control system: including microcomputer board, relay, etc

Installation Environment

①Indoor installation in a well ventilated area requires cement solidification, flatness, and firmness.

②The altitude should not exceed 1000 meters, otherwise the rated value should be reduced for use;

③The ambient temperature shall not exceed+40 ℃ and shall not be lower than -10 ℃;

④The relative humidity of the air shall not exceed 85%;

⑤No severe vibration, no conductive dust, no corrosive or explosive gases;

⑥The inclination during installation shall not exceed 5 degrees; And ensure that the three main pillars of the front desk are strictly vertical and horizontal (lifted with a heavy hammer).
