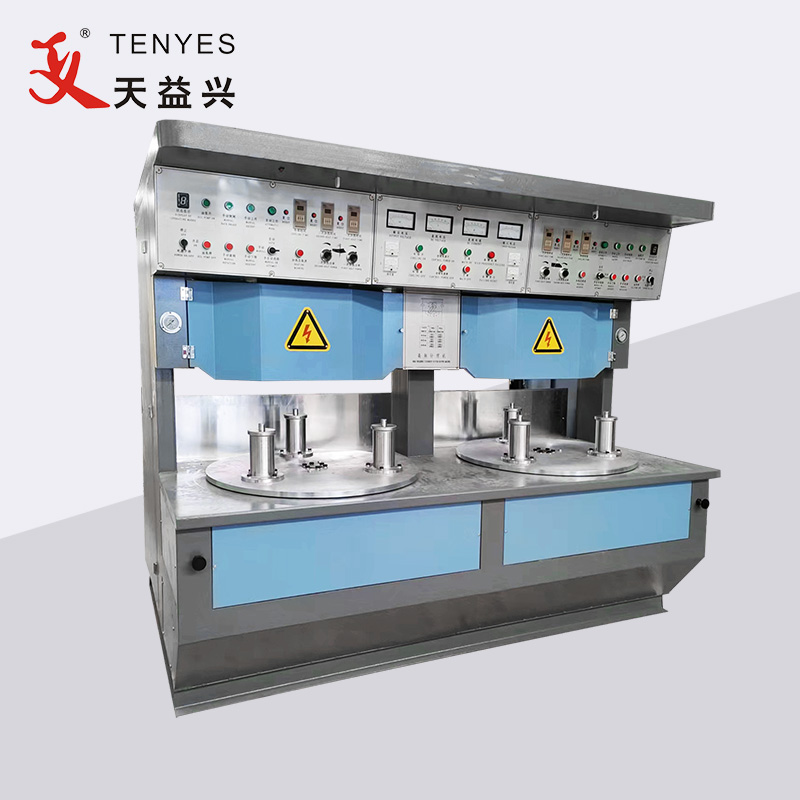

TENYES 100KW Transistor Cookware Bottom Brazing Machine is mainly used for cookware composite bottom welding of stainless steel/copper/aluminium pan, pot, kettle, and also can be used for plane heating of other workpiece. Cookware Pan and pot bottom brazing machine is an mechanical, hydraulic and electrical integrated equipment, controlled by several sets microcomputer. The main performance indicators takes the leading status at home and aboard.
TENYES 100KW Transistor Cookware Bottom Brazing Machine is mainly used for cookware composite bottom welding of stainless steel/copper/aluminium pan, pot, kettle, and also can be used for plane heating of other workpiece. Cookware Pan and pot bottom brazing machine is an mechanical, hydraulic and electrical integrated equipment, controlled by several sets microcomputer. The main performance indicators takes the leading status at home and aboard.
1.High frequency power supply.
2.Welding machine tool and hydraulic pressure part.
3.Water-cooling system
Model |
GPQH-21-100/400 |
Function part |
Composite metal pot bottom pressure induction heating welding |
Component part |
Operation table, Power system, Water cooling system |
Size of work-piece |
100-380mm |
Power |
100kw, 200-300KHz, 380V |
Induction head |
2pcs |
Dimension |
2650x2400x2000mm(L×W×H) |
weight |
About 3 T |
